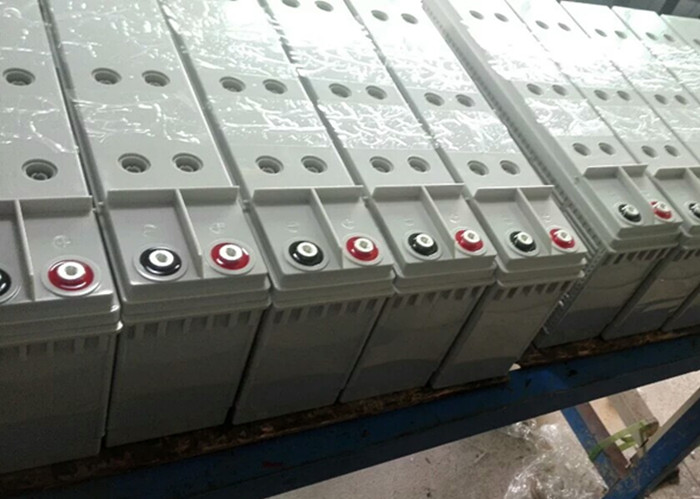

Front Terminal Battery 12v 100ah Solar Ups Inverter Battery Deep Cycle Gel
Deep Cycle Gel Front Terminal Battery 12v 100ah Solar Ups Inverter Battery
Description:
| Specifications & Characteristics Of solar power storage battery 12v105ah : | ||
| Nominal Voltage | 12V | |
| Rated Capacity (10 hour rate) | 100AH | |
| Size (Length*Width*Height*Total Height) | 410x110x224 mm | |
| Weight Approx | 29.5kg | |
Capacity Affected By Temperature | 40°C(104°F) | 102% |
| 25°C(77°F) | 100% | |
| 0°C(32°F) | 85% | |
| -15°C(5°F) | 65% | |
Self-Discharge at 25°C | Capacity after 3 Month Storage | 91% |
| Capacity after 6 Month Storage | 82% | |
| Capacity after 12 Month Storage | 64% | |
| Terminal | FRONT terminal | |
Cycle Charge | (time 14-16h) | |
| Voltage 14.4-14.8V | ||
Float Charge | Voltage 13.5-13.8V | |
| Usage | UPS/Solar/Wind/Alarm/Security/Telecommunication/Emergency Lighting System, Electronic Instrument/ Fire-fighting Equipment/ Standby Power Supply/ Etc | |
| Warranty | 2 Years | |
| OEM Service | Accept | |
| Color | Black | |
| Container Material | UL94HB And UL 94V-0 ABS Plastic | |
| Certificate | CE; UL; ISO9001; ISO14001 | |
Applications:
Telecommunication networks
Telecom company
Post office
Computer networks and the Internet
Digital channel station
Specifications:
Item no. | Terminal | Voltage(V) | Capacity(Ah) | Dimension(±1mm) | Weight | |||
Length | Width | Height | Total Height | |||||
mm | mm | mm | mm | kg | ||||
6FM50FG | F11 | 12 | 50 | 291 | 106 | 221 | 221 | 17.00 |
6FM55FG | F11 | 12 | 55 | 291 | 106 | 221 | 221 | 17.50 |
6FM75FG | F12 | 12 | 75 | 564 | 115 | 189 | 189 | 24.00 |
6FM95FG | F12 | 12 | 95 | 410 | 110 | 287 | 287 | 29.00 |
6FM100FG | F12 | 12 | 100 | 410 | 110 | 287 | 287 | 29.50 |
6FM105FG | F12 | 12 | 105 | 527 | 110 | 224 | 224 | 32.00 |
6FM125FG | F12 | 12 | 125 | 549 | 105 | 315 | 317 | 39.00 |
6FM150FG | F12 | 12 | 150 | 565 | 110 | 288 | 288 | 48.00 |
6FM155FG | F12 | 12 | 155 | 565 | 110 | 288 | 288 | 48.50 |
6FM180FG | F12 | 12 | 180 | 546 | 125 | 317 | 317 | 55.50 |
6FM200FG | F12 | 12 | 200 | 546 | 125 | 317 | 317 | 58.50 |
Competitive Advantage:
Special grid and design technology
Special container size for more convenient installation
99.994% pure lead for plates
Best performance with low cost
Low self-discharge
Manufacture with more than 15 years history
Long service life for 12 years
Capable of high discharge rates
